Showing all 5 resultsSorted by popularity
-
Home » Building Survey
£4,000.00 ex VAT
£4,800.00 inc VATSale!
Description

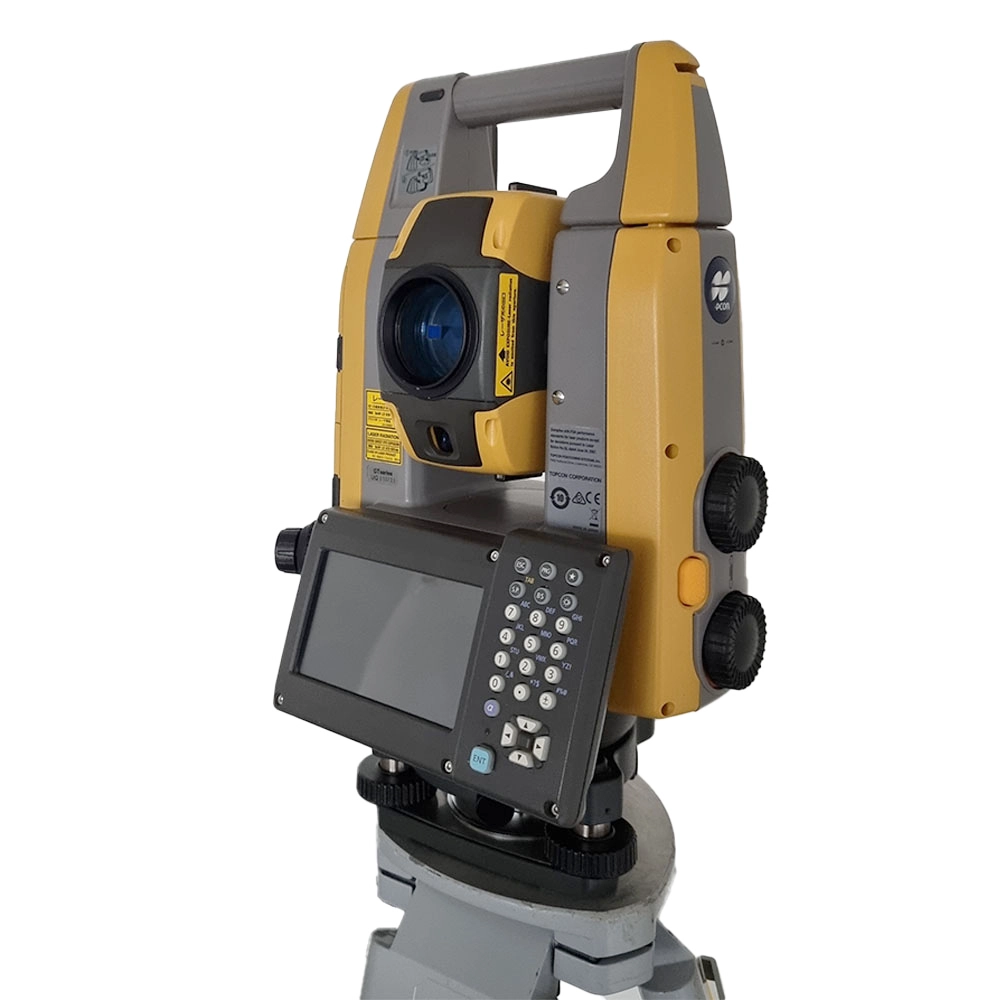

Topcon GT505 Total Station
This is a previously used ex-hire item that has been fully checked and calibrated in our Topcon approved workshop.
Full robotic packages are also available as ex hire reconditioned instruments and come with everything need to work (*except the software)
3 month back to base warranty on all of our reconditioned items. Extended warranty is also available to purchase.
Please call our sales team to discuss your requirements.
We have more than one kit currently available. Packages that include the field controller do not include Topcon Field software, this is available to purchase separately, or may be transferred from your existing device, please contact us to discuss any requirements before purchase.
This item is available to hire from JB Survey Limited
Short and long term hires - Competitive rates - Fast delivery
Technical Specifications
Angle Accuracy 5" Distance Accuracy Fine: ± (1+2ppm xD)mm; Rapid: ± (5+2 ppm xD)mm using ATP1 prism Tracking Range 2 to 600m with ATP1 Max Revolving Speed 120 degrees per second Dust/Water Rating IP65 Weight (with Handle & Battery) 5.8kg Operating Time BDC70: Approx. 4 hours
Topcon GT505 Total Station Brochure
Topcon GT505 Total Station Specifications

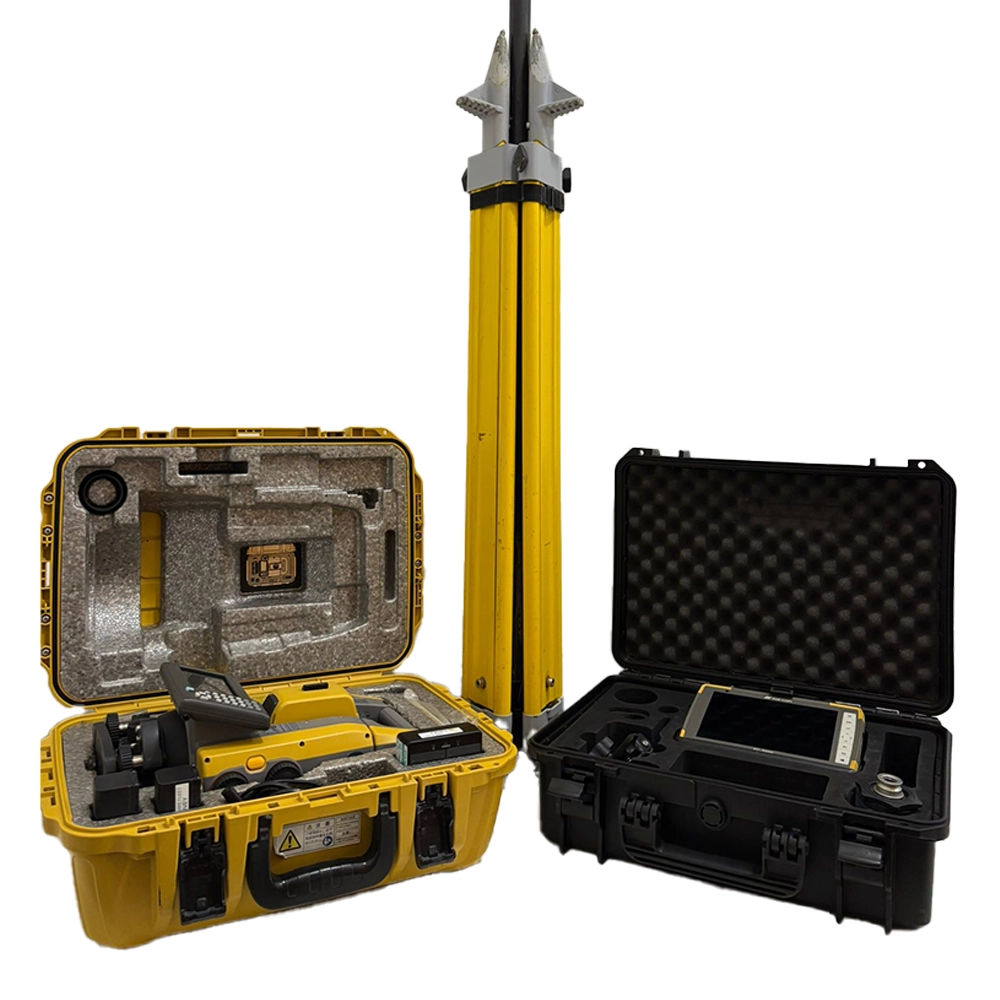

What's in the box:
Topcon GT505 Total Station, CDC68 Battery Charger
and 2x BDC70 Batteries
Optional Package Items:
Topcon FC-5000 Field Controller, Controller Bracket,
Topcon ATP1 360 degree Prism, Topcon Wooden Tripod
& Topcon Carbon Detail Pole
All of our reconditioned Total Stations are calibrated before despatch and come with a certificate of conformity included in the price (pdf as standard, paper copy on request).
As an approved distributor and service centre for Topcon Positioning we are able to carry out any repairs and servicing for the life of the instrument.
Related products
ALSO FROM JB SURVEY
SURVEY EQUIPMENT HIRE
Ad-Hoc hires for survey, safety and machine control
JB SERVICEPLUS
12 Month Service Plan Subscriptions
JB SURVEYPLAN
Hire Subscriptions from JB Survey Limited
-
Home » Building Survey
Precision you can trust
£13,522.00 ex VAT
£16,226.40 inc VATAvailable on back-order
Description
The All New Topcon HiPer XR delivers precision and efficiency, tackling your challenges with RTK accuracy and Dynamic TILT Compensation technology for effortless measurements even in difficult conditions.
Calibration-free and immune to magnetic interference tilt compensation up to 60°
GNSS interference monitoring and mitigation technology for anti-jamming and anti-spoofing
Improved RTK performance for more reliable results
Universal USB-C connectivity and battery charging
Integrated web user interface for easy access and controlThis item is available to hire from JB Survey Limited
Short and long term hires - Competitive rates - Fast delivery
Technical Specifications
Signals Tracked GPS, GLONASS, Galileo, BeiDou, IRNSS, SBAS, QZSS Precision Static H: 3mm ± 0.1 ppm V: 3.5mm ± 0.4 ppm Static/ Fast Static H: 3mm ± 0.5 ppm V: 5mm ± 0.8 ppm RTK H: 5mm ± 0.5 ppm V: 10mm ± 0.8 ppm Communications Optional Internal Radio, Cellular, Longlink Bluetooth, Bluetooth, USB C Operating Time Up to 15 hours
Topcon HiPer XR GNSS Receiver Brochure
Topcon HiPer XR GNSS Receiver Data Sheet
Customisable Packages:
Order your new Topcon HiPer XR package today.
Get in touch for options including base and rover and RTK receiver kits.
Delivery usually within 5 working days.
*£13,522 is indicative price for a basic package. Please contact us for full pricing details.
Related products
ALSO FROM JB SURVEY
SURVEY EQUIPMENT HIRE
Ad-Hoc hires for survey, safety and machine control
JB SERVICEPLUS
12 Month Service Plan Subscriptions
JB SURVEYPLAN
Hire Subscriptions from JB Survey Limited
-
Home » Building Survey
Packages start from £7600 ex VAT
£7,980.00 ex VAT
£9,576.00 inc VATAvailable on back-order
SKU: 1070021 Categories: GPS Equipment, Survey, TopconTags: Building Survey, Construction Tools, Construction Verification, CR GPS, GPS Rover, New Topcon GPS, Survey GPS, Tilt GPS, Topcon, Topcon CR, Topcon GNSS, Topcon GPS, Topcon Positioning, Topcon Survey
Description
Get precise centimetre-level accuracy effortlessly with this compact powerhouse, ideal for various survey and construction tasks. The HiPer CR is an ultra-lightweight and compact solution that minimizes pole weight, ensuring easy mobility and field usability. Despite its small size, the HiPer CR excels in challenging canopy and jobsite environments, delivering exceptional performance.
This item is available to hire from JB Survey Limited
Short and long term hires - Competitive rates - Fast delivery
Technical Specifications
Signals Tracked GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS Precision Static H: 3mm ± 0.1 ppm V: 3.5mm ± 0.4 ppm Static/ Fast Static H: 3mm ± 0.4 ppm V: 5mm ± 0.6 ppm RTK H: 10mm ± 0.8 ppm V: 15mm ± 1.0 ppm Communications Longlink Bluetooth, Bluetooth, USB 2.0 Operating Time Up to 10 hours
Topcon HiPer CR GNSS Receiver Brochure
Topcon HiPer CR GNSS Receiver Data Sheet
Customisable Packages:
Purchase as a hybrid upgrade, or stand alone rover set.
Common kits include receiver, controller, pole, Field software.
RTK corrections license available.
*£7,600 package includes CR receiver, Android FC6000, 12m Android Field License and composite rover pole.
Please get in touch for other package options and quantity discounts.
Related products
ALSO FROM JB SURVEY
SURVEY EQUIPMENT HIRE
Ad-Hoc hires for survey, safety and machine control
JB SERVICEPLUS
12 Month Service Plan Subscriptions
JB SURVEYPLAN
Hire Subscriptions from JB Survey Limited
-
Home » Building Survey
£0.00 ex VAT
£0.00 inc VAT
Description
Related products
ALSO FROM JB SURVEY
SURVEY EQUIPMENT HIRE
Ad-Hoc hires for survey, safety and machine control
JB SERVICEPLUS
12 Month Service Plan Subscriptions
JB SURVEYPLAN
Hire Subscriptions from JB Survey Limited
-
Home » Building Survey
Packages start from £12,400 ex VAT
£13,020.00 ex VAT
£15,624.00 inc VATAvailable on back-order
SKU: 1028517-02 Categories: GPS Equipment, Survey, TopconTags: Building Survey, Construction Tools, Construction Verification, GPS Rover, New Topcon GPS, Survey GPS, Tilt GPS, Topcon, Topcon GNSS, Topcon GPS, Topcon Positioning, Topcon Survey, Topcon VR, VR GPS
Description
The Topcon HiPer VR is versatile and rugged, designed with the advanced GNSS technology delivering precise measurements in the most challenging of environments. Topcon patented Universal Tracking Channels™️ technology provides the industry’s most efficient approach in identifying and using every satellite signal. All constellation signals are tracked automatically from any available channel. Thus, reaching maximum performance with a reduced number of channels.
This item is available to hire from JB Survey Limited
Short and long term hires - Competitive rates - Fast delivery
Technical Specifications
Signals Tracked GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, IRNSS Precision Static H: 3mm ± 0.1 ppm V: 3.5mm ± 0.4 ppm Static/ Fast Static H: 3mm ± 0.4 ppm V: 5mm ± 0.6 ppm RTK H: 5mm ± 0.5 ppm V: 10mm ± 0.8 ppm Communications Longlink Bluetooth, Bluetooth, USB 2.0, UHF Radio Operating Time Up to 10 hours
Topcon HiPer VR GNSS Receiver Brochure
Topcon HiPer VR GNSS Receiver Data Sheet
Customisable Packages:
Purchase as a base station, base and rover set, hybrid upgrade, or stand alone rover set.
Common kits include receiver, controller, pole, Field software.
RTK corrections license available.
*£12,400 package includes VR base receiver, Android tablet, 12m Android Field License and tripod.
Please get in touch for other package options and quantity discounts.
