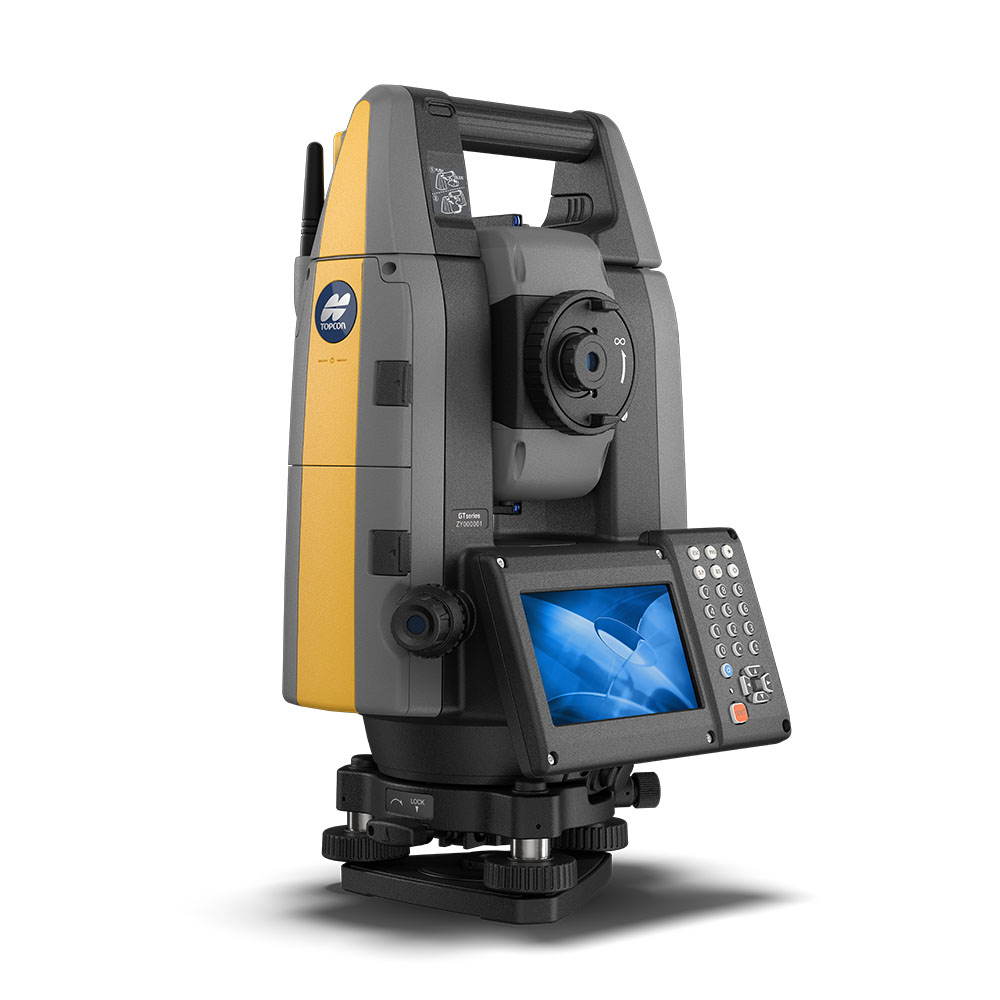

Topcon GT 700 Series Total Station

Speed, power and flexibility for modern site measurement

The Topcon GT-700 robotic total stations are built for surveyors and construction professionals who need fast setup, reliable prism tracking and consistent accuracy on demanding job sites.

Designed for single-operator robotic work or traditional two-person surveying, the GT series delivers smooth, ultra-silent operation, rapid prism acquisition and long-range EDM performance — helping you measure, stake out and monitor more efficiently, even in tough conditions.

Built to keep you moving on site

When accuracy matters and time is tight, the GT-700 gives you confidence to work faster without compromising results.

Advanced brushless direct-control (BLDC) motors provide smooth, quiet rotation with minimal wear, extending instrument life while delivering rapid turning speeds of up to 200° per second. Combined with UltraTrac™ prism tracking and fast auto-pointing, the instrument locks onto the prism quickly and stays locked — so you spend less time waiting and more time working.

Whether you’re carrying out construction layout, monitoring or control work, the GT series is built to perform all day, every day.

Key benefits at a glance

• Single-operator or two-person operation using the same field software

• Ultra-silent BLDC motors for smooth, precise movement

• Fast prism acquisition and tracking in challenging site conditions

• Compact and lightweight design for easier transport and handling

• Hybrid ready, allowing GNSS integration for maximum flexibility

Fast prism tracking and re-acquisition

Losing line-of-sight on busy sites costs time. The GT-700 solves this with intelligent tracking and optional RC-5A remote control.

With a single tap in your field software, the instrument detects the RC-5A’s fan-shaped laser beam and re-acquires the prism in seconds, even after interruptions caused by vehicles, structures or terrain. No manual searching, no downtime — just seamless workflow continuity.

Designed for demanding environments

The GT series is engineered for real-world construction and surveying work:

• UltraTrac™ technology combines optical sensing with high-speed motor control

• IP65 rated for dust and water resistance

• Bright colour touchscreen display for on-board data collection

• Integrated Bluetooth® and LongLink™ for extended communication

• Up to 40-hour battery life for long working days

Powerful EDM performance

• Up to 1,000 m reflectorless range

• Up to 5,000 m prism range

• 10 Hz EDM update rate for faster, more efficient staking

This performance makes the GT-700 ideal for both short-range layout and long-range control work.

Hybrid positioning ready

Pair the GT-700 with GNSS to create a hybrid positioning solution, allowing you to work seamlessly when line-of-sight is lost, under tree cover or at hard-to-reach points. Switch between technologies using the same software and data files — no disruption, no rework.

Typical applications

• Construction layout and setting-out

• Monitoring and control surveys

• Infrastructure and civil engineering projects

• Building construction and steelwork layout

• Hybrid GNSS / robotic workflows

Why buy from JB Survey?

• Expert advice from surveying specialists

• Sales, hire and support options available

• Calibration, servicing and ongoing support

• Demonstrations available on request

Technical Specifications

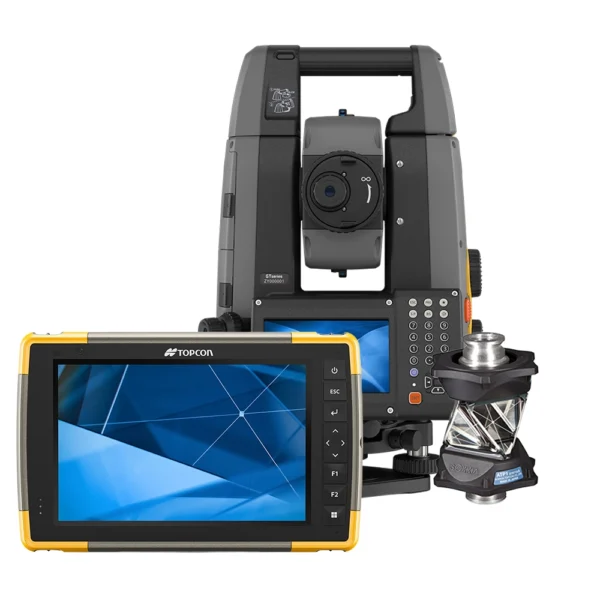

Customisable Packages:

Common Packages include:

Topcon GT 705 Series Total Station

Topcon FC6400 Field Controller

Topcon ATP1 360 Degree Prism

Topcon Field Software License

*£17,800 price is indicative for a basic package - please get in touch for a full quotation
