£4,000.00 ex VAT
£4,800.00 inc VATDescription

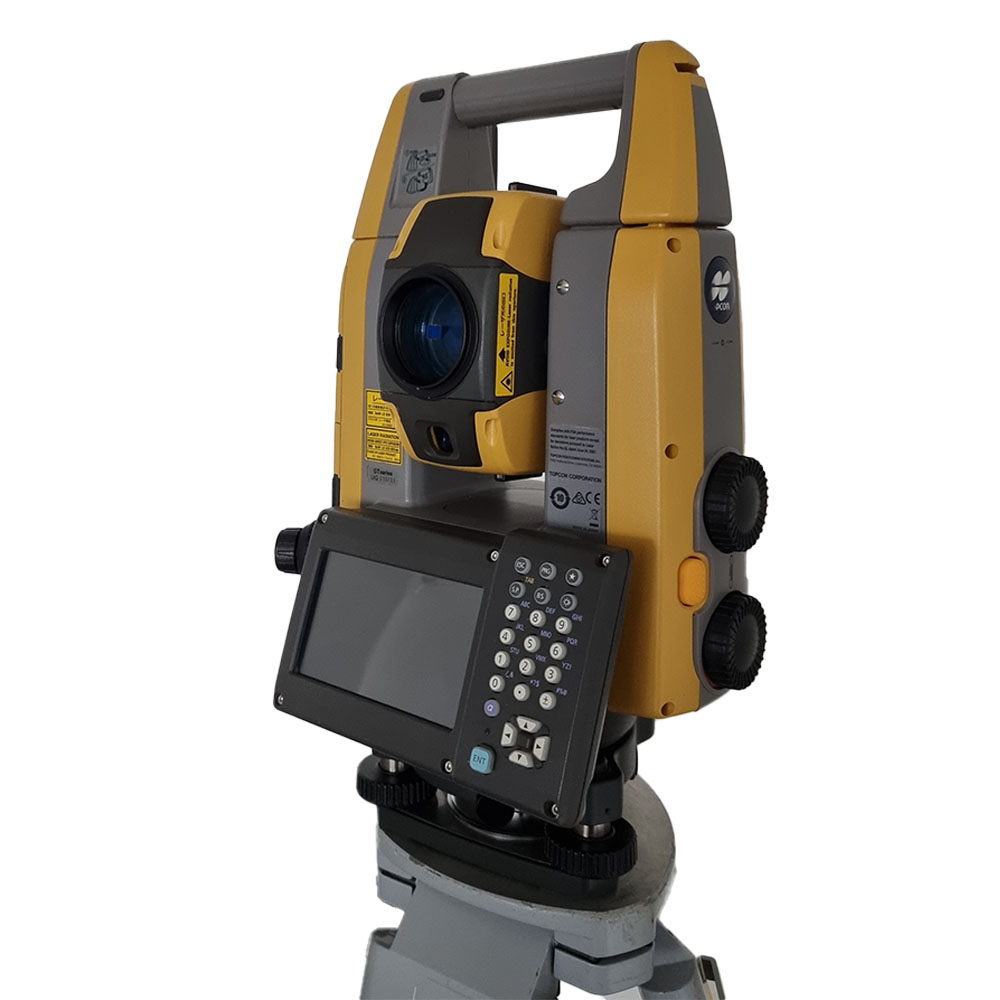

Topcon GT505 Total Station
This is a previously used ex-hire item that has been fully checked and calibrated in our Topcon approved workshop.
Full robotic packages are also available as ex hire reconditioned instruments and come with everything need to work (*except the software)
3 month back to base warranty on all of our reconditioned items. Extended warranty is also available to purchase.
Please call our sales team to discuss your requirements.
We have more than one kit currently available. Packages that include the field controller do not include Topcon Field software, this is available to purchase separately, or may be transferred from your existing device, please contact us to discuss any requirements before purchase.
This item is available to hire from JB Survey Limited
Short and long term hires - Competitive rates - Fast delivery
Technical Specifications
| Angle Accuracy | 5" |
| Distance Accuracy | Fine: ± (1+2ppm xD)mm; Rapid: ± (5+2 ppm xD)mm using ATP1 prism |
| Tracking Range | 2 to 600m with ATP1 |
| Max Revolving Speed | 120 degrees per second |
| Dust/Water Rating | IP65 |
| Weight (with Handle & Battery) | 5.8kg |
| Operating Time | BDC70: Approx. 4 hours |
Topcon GT505 Total Station Brochure
Topcon GT505 Total Station Specifications
What's in the box:
Topcon GT505 Total Station, CDC68 Battery Charger
and 2x BDC70 Batteries
Optional Package Items:
Topcon FC-5000 Field Controller, Controller Bracket,
Topcon ATP1 360 degree Prism, Topcon Wooden Tripod
& Topcon Carbon Detail Pole
All of our reconditioned Total Stations are calibrated before despatch and come with a certificate of conformity included in the price (pdf as standard, paper copy on request).
As an approved distributor and service centre for Topcon Positioning we are able to carry out any repairs and servicing for the life of the instrument.
