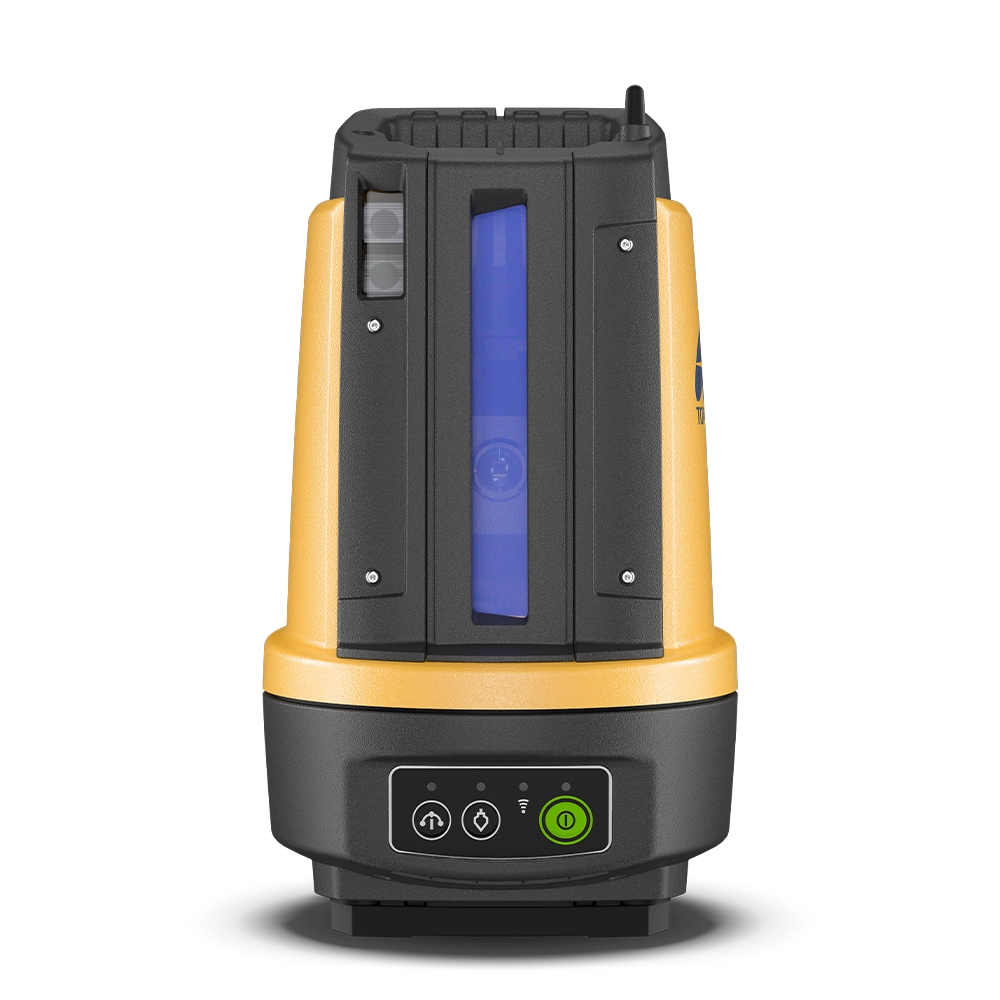

Topcon LN-160 Layout Navigator

Fast, simple and precise construction layout

The Topcon LN-160 3D Layout Navigator transforms how you approach construction layout, moving you away from tape measures, manual templates and guesswork into fast, accurate digital positioning. Built from Topcon’s robotic total station expertise, the LN-160 gives you intuitive one-person operation and industry-proven precision without unnecessary complexity.

Designed for real construction workflows

Whether you’re laying out foundations, utilities, walls, ceilings or as-builts, the LN-160 delivers reliable results across a wide range of layout tasks. Its smart design takes care of routine setup and keeps you productive from the moment you power on.

Key benefits

Simple one-button setup – self-leveling and ready to go in seconds

Compact, rugged design – built for busy job sites

Accurate 3D layout – position points up to 130 m from the instrument

One-operator productivity – cut layout and checking time dramatically

Seamless digital workflows – pair with tablets or controllers and import design data

Long-lasting power – external battery port for extended use

Why it’s different

The LN-160 isn’t just another total station — it’s a layout navigator engineered specifically for construction teams who need speed and accuracy. From slab layout to cladding checks, it replaces manual methods with precise, reproducible results that you can trust day after day.

Easy to use — even for non-surveyors

With self-leveling and intuitive guidance, the LN-160 is accessible for crews of all experience levels. Pair it with a rugged field tablet or handheld controller, upload your design (CAD/BIM), and the instrument guides you exactly where you need to be — no complex setup required.

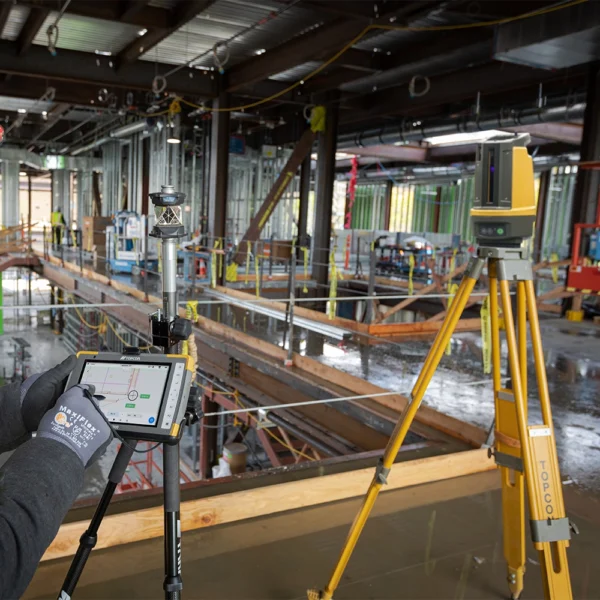

Built for modern job sites

Robust construction – waterproof and dustproof for all weather conditions

Wireless connectivity – connect tablets or controllers for real-time layout

Practical range – up to 130 m (426 ft) coverage for most build spaces

Efficient workflows – reduce rework and improve quality control on every project

Typical applications

The LN-160 excels in a range of layout and verification tasks including:

Foundations, footings and utility lines

Walls, slabs and ceilings

Machine control assistance

As-built checks and measurement verification

Complex grids and structural control points

Ready to digitise your layout?

Whether you’re upgrading from manual layout tools or adding a dedicated layout navigator to your fleet, the Topcon LN-160 helps you work faster, smarter and with confidence.

Technical Specifications

Customisable Packages:

Purchase as a standalone instrument, with controller and software or with a MC Mobile installation.

Common kits include LN-160, controller, tripod, pole, Layout software.

*£11,632 package includes LN-160, mini prism and pole set, 12m Layout License and wooden tripod.

Please get in touch for other package options and quantity discounts.
