Showing all 6 results
-
Home » Self Levelling Laser
Simplifies level, grade and vertical alignment setups
£1,475.00 Ex VAT
Out of stock
Description
The GL1425C delivers consistently reliable and accurate performance
The automatic self-levelling GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions enables you to work faster (up to 900 rpm) and smarter. The GL1425C comes with Bluetooth built-in and has a dedicated Laser Remote App.
Features & Benefits
Self-Levelling - Automatic horizontal and vertical levelling
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
Working range of 800 m (2,600 ft) diameter
Automatic Grade Matching - Radio communication between the HL760 DRO receiver and the laser provides automatic Grade Matching and PlaneLok
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
Rotation selection of 300, 600 or 900 RPM
Rugged - Extremely durable and portable
5 Year warranty
Increases reliability, accuracy and durability
Easy to transport, easy to carry, easy to store
Energy-efficient design offers long battery life
Highly durable design enables the GL1425C to survive a drop up to 1 m (3 feet) onto concrete
Remote control or remote control app allows operation of all laser functions from anywhere on the job-site
Multiple configuration options
Technical Specifications
Accuracy H: ±10 arc seconds Self Levelling Range No Tilt Adjustment: ±9°
With Tilt Adjustment: ±15°Grade Range Horizontal ±5° Working Area 800m (diameter) Rotation Speed 300, 600, 900 rpm Dust/Water Rating IP66 Operating Temp. -20°C to 50°C Operating Time Ni-MH: 45 hours
Spectra GL1425 Grade Laser Brochure
Spectra GL1425 Grade Laser User Guide
What's in the box:
Spectra GL1425 Grade Laser
HL760 Receiver
C70 Receiver Bracket
105516 Vertical Adapter for HL Receivers
RC1402 Remote Control
Rechargeable Batteries
CH10 Worldwide charger
Carrying Case
-
Home » Self Levelling Laser
Highest Accuracy, Longest Range Grade Laser
£4,296.00 Ex VAT
Out of stock
Description
The GL722 dual grade laser is one of the most advanced grade lasers on the market. The long range operation, advanced radio remote, grade matching, Planelok and Automatic Axis Alignment features mean that you can do quick but highly accurate set-ups for any grade application.Active Temperature Compensation - accurate, stable results regardless of temperature change
Long Range Wireless Link - unaffected by direction or sunlight provides quick, accurate set-up even when the laser is on a 3m tripod and provides full functional control of the laser
Protective Lens Hood - ensures laser performance in inclement weather means the laser will work when you are working regardless of weather
Intuitive, simple controls - makes using the GL700 Series easy to use and learn
Long Life Batter - flexible power options, battery life indicator and wireless operated sleep mode that saves battery during breaks
Fully Sealed, Rugged Aluminum Housing - with weather-resistant control panel, allow you to work in all weather and work conditions
Grade Bump - allows you to simply raise or lower the grade remotely
Grade Reverse - Mirrors the grade setting with the push of a button, flipping the set grade for example from +1% to -1%
Automatic off-grade sensor - prevents incorrect grading and wasted man and machine hours
Long range remote - 225m (750ft) for general operation and 150m (500ft) automatic alignment
Automatic Axis Alignment - allows you to align automatically to your grade hub eliminating costly error by not being aligned correctly when using grade
Machine Control Compatible - works with all laser-based machine control systems
Infrared Model - for rail work where red beams are not allowed on live track – The GL722IR provides all the benefits of the standard model but with Infrared beamTechnical Specifications
Grade Range X Axis Grade Range: -10% to +10%
Y Axis Grade Range: 0.500% to +25%Self Levelling Range 25% Working Area 900m (diameter) Grade Resolution 4.6 arc seconds Rotation Speeds 300, 600, 900 rpm Battery Life 30 hours Water Resistance Completely Sealed and Waterproof
Spectra GL722 Grade Laser Brochure
Spectra GL722 Grade Laser User Guide
What's in the Box:
Spectra GL722 Grade Laser
RC703 Remote Control
1445-2093 Battery Charger
Rechargeable Batteries
Carry Case
-
Home » Self Levelling LaserSKU: N/A Categories: Exterior Lasers, Lasers, Spectra PrecisionTags: Construction Laser, Construction Tools, Laser, Laser Level, Red Laser Level, Rotating Laser, Self Levelling Laser, Spectra, Spectra Laser Level, Spectra Rotating Laser

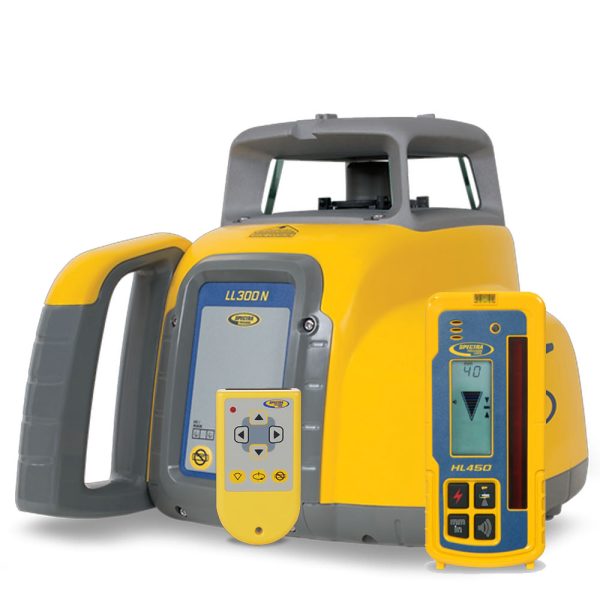

The Spectra LL300N laser level is built to perform in rough environments
£488.00 – £735.00 Ex VAT
Description
The Most Rugged Laser Level Available
The automatic, self-levelling Spectra Precision® LL300N Laser Level is tough enough to handle a wide variety of general and concrete construction applications. Even in harsh jobsite conditions, the LL300N delivers consistently reliable and accurate performance, enabling you to work faster and smarter.
The rugged LL300N laser can withstand drops of up to three feet (one meter) onto concrete and tripod tipovers up to five feet (1.5 meters). This strength, combined with full weatherproofing and dustproofing, reduces downtime and lowers repair costs over the life of the product. The LL300N laser’s self-levelling capability and optional RC601 remote control result in outstanding accuracy and ease of use. Since the LL300N laser levels itself when turned on, setup is easy with fewer controls to deal with. The RC601 remote control gives you the option of matching slopes or having slopes-ongrade. It also offers single-axis slope including HI warning control with the other axis continuing to level itself.
Technical Specifications
Accuracy ±2.2 mm at 30 m Self Levelling Range Horizontal ±5° Working Area 500m (diameter) Rotation Speed 600 rpm Dust/Water Rating IP66 Operating Temp. -20°C to 50°C Operating Time Alkaline: 90 hours
Ni-MH: 45 hours
Spectra LL300N Laser Level Brochure
Spectra LL300N Laser Level User Guide
What's in the box:
Spectra LL300N Laser Level with digital calibration certificate
Chosen Receiver (HR320 or HL450)
Receiver Bracket (C59 or C45)
Optional RC601 Remote Control
Rechargeable Battery Pack
95720-00 Battery Charger
Carry Case
-
Home » Self Levelling LaserSKU: N/A Categories: Grade Lasers, Lasers, TopconTags: Construction Laser, Construction Tools, Dual Grade Laser, Grade Laser, Laser, Laser Level, Red Laser Level, Rotating Laser, Self Levelling Laser, Slope Laser, Topcon, Topcon Laser Level, Topcon Rotating Laser
You need accuracy RL200 lasers deliver
£2,582.00 – £2,778.00 Ex VAT
Description
MORE WORKING METERS
Slope lasers are perhaps the most advanced of all rotating construction lasers. They are used over long working distances, and bring the same accuracy everywhere with extremely exacting slopes.
The RL-200 gives the machine operator a tool to set the desired cross slope and elevation values from the driver seat for improved productivity.
Wide grade range (up to 25 % slope)
Up to 100 hours battery life
Increased working diameter - 1100 m
Clear graphical display
Environment rating IPX6
In control... remote control
Topcon slope lasers set new standards for simplicity and accuracy. In addition to many functionalities, the RL-200 comes with a full function radio remote. All operating information is on display. Change grade, select menu settings, check operational status, even verify battery life, all available while grading.
Technical Specifications
Accuracy H: ±7 arc seconds Repeatability 7 arc seconds Working Area 1100 m Rotation Speed 300/600/900 rpm Grade Range ±10 / -5 to +25; Dust/Water Rating IP66 Size (H x W x L) 253 x 218 x 174 mm Operating Time Alkaline: 100 hours;
Ni-MH: 90 hours
Topcon RL2002S Grade Laser Brochure
Topcon RL2002S Grade Laser User Guide
What's in the Box:
Topcon RL-2002S Grade Laser Level with Digital Calibration Certificate
Chosen receiver (LS-80X or LS-100D)
Receiver Bracket (Holder 6 or Holder 110)
RC400 Remote Control
Rechargeable Battery Pack
AD-11 Battery Charger
Carry Case
-
Home » Self Levelling LaserSKU: N/A Categories: Exterior Lasers, Lasers, TopconTags: Construction Laser, Construction Tools, Laser, Laser Level, Red Laser Level, Rotating Laser, Self Levelling Laser, Topcon, Topcon Laser Level, Topcon Rotating Laser
Next generation self levelling construction laser
£550.00 – £710.00 Ex VAT
Description
The Next Step in Distance and Accuracy
With great distance and high-accuracy — The Topcon RL-H5A Laser Level is a next generation self-levelling construction laser.
Long-range operation (800 m)
Smart long-range receiver
Simple, intuitive manual slope capability
±10 Arc second horizontal accuracy
Extra-long battery life (100 hours)
Tough IP66 weatherproof rating
Built for the real world
Looking for a rugged, reliable laser? A laser you can count on to increase quality and efficiency? A laser that provides maximum impact at a minimum price? You’ve found it. The RL-H5A laser is the durable, long range, high accuracy solution you need.
Technical Specifications
Accuracy H: ±10 arc seconds Self Levelling Range Horizontal ±5° Working Area 800m (diameter) Rotation Speed 600 rpm Dust/Water Rating IP66 Operating Temp. -20°C to 50°C Operating Time Alkaline: 100 hours
Ni-MH: 60 hours
Topcon RL-H5A Laser Level Brochure
Topcon RL-H5A Laser Level User Guide
What's in the Box:
Topcon RL-H5A Laser Level with digital calibration certificate
Chosen Receiver (LS-80X or LS-100D)
Receiver Bracket (Holder 6 or Holder 110)
BT79Q Rechargeable Battery Pack
AD-17 Battery Charger
Carry Case
-
Home » Self Levelling LaserSKU: N/A Categories: Grade Lasers, Lasers, TopconTags: Construction Laser, Construction Tools, Dual Grade Laser, Grade Laser, Laser, Laser Level, Red Laser Level, Rotating Laser, Self Levelling Laser, Slope Laser, Topcon, Topcon Laser Level, Topcon Rotating Laser
Built for the real world
£1,425.00 – £3,848.00 Ex VAT
Description
Topcon RL-HV2S Grade Laser - USE IT FOR EVERYTHING
The Topcon RL-HV2S Grade Laser is designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications. Slopes up to ±5% (±15% with tilting plate) can be used in either the X or Y axis. Turn it on its side and use it for layout and alignment jobs.
Horizontal, single and dual slope
Vertical function
Laser Manager App
Long-range operation (800m)
Tough IP66 construction rating
Extra-long battery life (120 hours)
If you need a laser for horizontal, single slope, dual slope and vertical applications — look no further — this Topcon laser combines it all. The RL-HV2S dual slope laser sets new standards for simplicity. Rugged, lightweight and compact, it's twice the laser at an amazingly affordable price!
Set it up in no-time. The large backlit high-contrast display makes it very easy for you to get started and keeps you going for a long, long time.Technical Specifications
Accuracy H: ±10 arc seconds Self Levelling Range Horizontal ±5° Grade Dual, ±5% Working Area 800m (diameter) Rotation Speed 300, 600 rpm Dust/Water Rating IP66 Operating Temp. -20°C to 50°C Operating Time Alkaline: 120 hours
Ni-MH: 65 Hours
Topcon RL-HV2S Grade Laser Brochure
Topcon RL-HV2S Grade Laser User Guide
What's in the Box:
Topcon RL-HV2S Grade Laser with Digital Calibration Certificate
Chosen Receiver (LS-80X, LS-100D or LS-B20W)*
Receiver Bracket (Holder 6 or Holder 110)*
Rechargeable Battery Pack
AD-17 Battery Charger
Carry Case
LS-B200W machine receiver boxed separately
*Not supplied if LS-B200W receiver chosen
